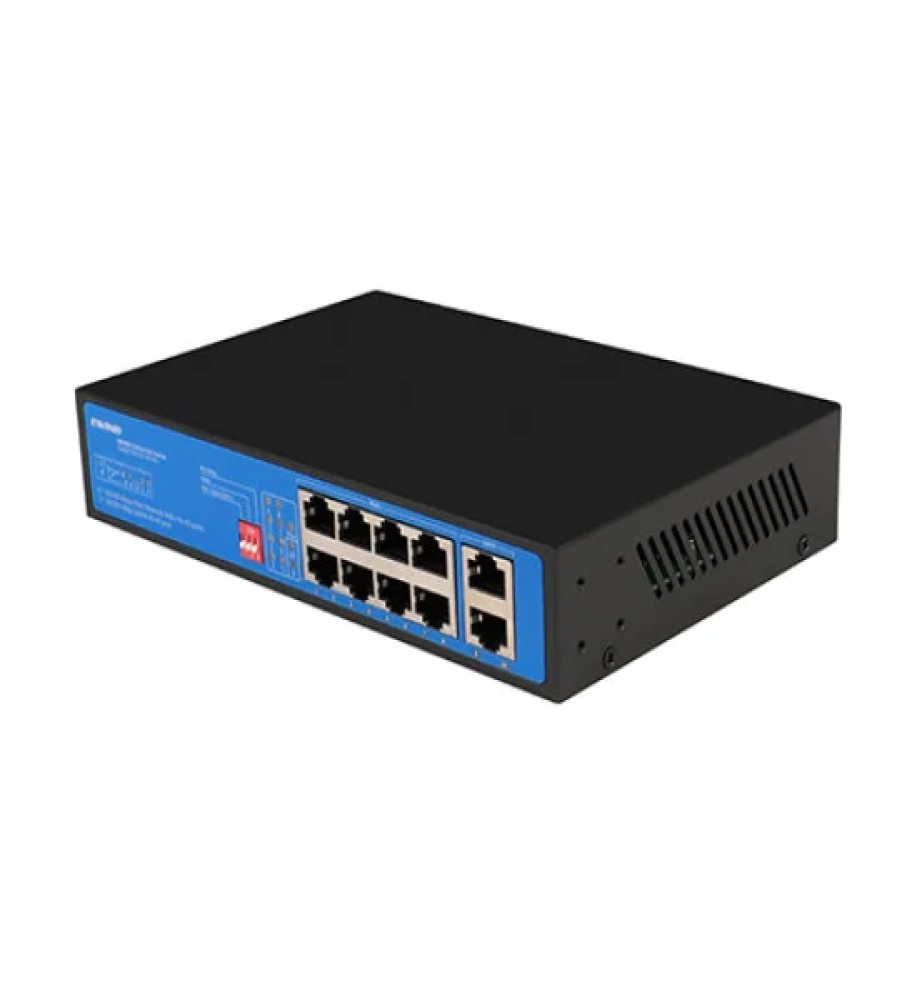

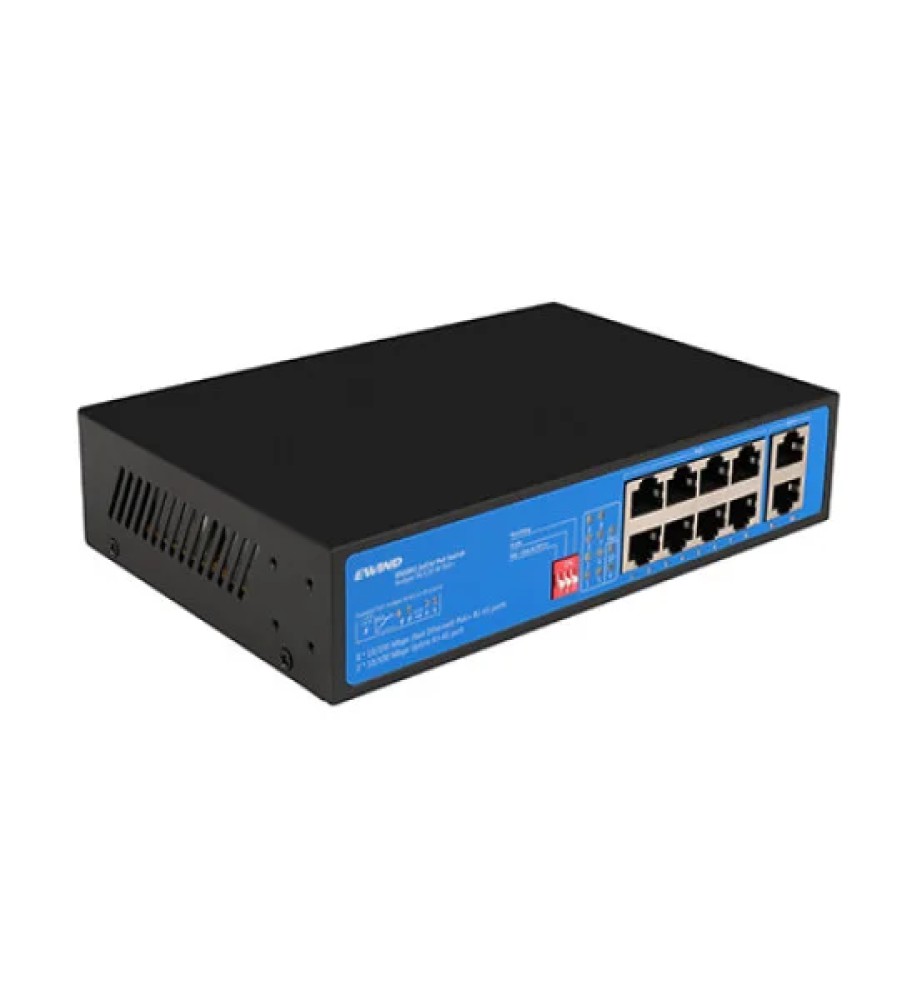

EWIND EW-S1510CF-AP 8 port s POE SWITCH WITH BUILD-IN POWER SUPPLY

Product ID:50867
Discount Price:  3700 ৳500 Off Regular Price: ৳4200
Key Points

  • AI Extend 300meters transmission
  • PoE Watchdog function
  • Auto Speed Change
  • Support port priority by default

  • Warranty Type : 2 Years Official
  • Regular Price: 4200 ৳
  • Stock: Stock Out
  • Category: Cudy POE Switch
Description :

Specification
Switch
Advanced FunctionsWith the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-8 Port support each port Isolation & VLAN;
D: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
CertificationCCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
EnvironmentOperation TEMP / Humidity -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity -40~+75°C;5%~95% RH non condensing
Forwarding mode1.49Mpps
LEDsPower indicator: PWR (Green);
Network indicator: 1-8(Link/Act)/ (Green),9–10(Link/Act)/ (Green),
Network ProtocolIEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3x.
PowerBuild-in power adaptor AC100~240V 50-60Hz,120W
Power inputTotal PWR / Input Voltage 120W (52VDC)
ProtectionIEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV
Protection Level IP30
Port lightning protection / level
Port lightning protection : 4KV 8/20us;
Protection level: IP30
Switching Capacity2Gbps
Fixed Port8*10/100Base-T/TX PoE ports (Data/Power)
2*10/100Base-T/TX Uplink RJ45 ports (Data)
POE PortPort 1-8 support PoE @ IEEE802.3af/at
PoE StandardIEEE802.3af/at
MAC2K
Buffer Memory1.25M
Power ConsumptionPower Consumption Standby:<4W;Full load:<120W
Installation Methoddesktop type ,wall mounted
Power SupplyPower Supply Pin Default 1/2(+), 3/6(-);
MAX / AVERAGE Power Per Port 30W/15.4W
Dimension195*130*40mm
Weight<1kg / <1.5kg
Warranty2 Years
PortEthernet Port Feature 10/100Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Fiber Port Feature Store and Forward
Transfer MethodTwisted Pair Transmission
10BASE-T:Cat5 UTP(≤250 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter)

EWIND EW-S1510CF-AP POE SWITCH PRICE IN BD

Looking for the best deal on the EWIND EW-S1510CF-AP 10 Ports PoE Switch with a built-in power supply in Bangladesh? Look no further than Quick Link Technology! We offer unbeatable prices on this high-performance PoE switch. The EW-S1510CF-AP series is a reliable and efficient 10/100M unmanaged PoE switch. It features 8 10/100M PoE ports and 2 10/100M uplink RJ45 ports, making it a versatile solution for your networking needs. What sets it apart is its ability to provide IEEE 802.3af/at standard PoE power supply to ports 1-8, with each port delivering a maximum of 30W of power. With a total PoE output power of 120W, it can effortlessly power various PoE terminal devices such as wireless access points, webcams, VoIP phones, and visual intelligent building intercoms through a standard network cable. One of its standout features is its automatic detection and recognition of power-receiving equipment that complies with the standards, ensuring seamless power supply through the network cable. This makes it ideal for environments requiring high-density PoE power, including hotels, campuses, factory dormitories, and small and medium-sized enterprises. With the convenient Dial code switch, you can easily configure port priorities. The switch also supports advanced features, including AI-based 300-meter transmission extension and automatic speed adjustment for single ports (limited to 10Mbps), while maintaining 100M/1000M speeds within 100 meters. Additionally, you can activate port isolation and VLAN support (V) for ports 1-8 or enable AI-PoE Network self-healing mode (D), which automatically resolves camera issues and reduces after-sale concerns. Trust Quick Link Technology for the best prices and top-notch networking solutions. Get your EWIND EW-S1510CF-AP switch today and experience reliable power and performance.
Quick Link Technology, the leading computer and networking retailer shop in Bangladesh, is renowned for its exemplary client support. Their dedicated and knowledgeable team is always eager to assist customers. Quick Technology boasts an extensive collection of SWITCH , a testament to their recognized selection of SWITCH.
